DIY Layout editor

PCB, Perfboard or Stripboard designer

Courtesy/Thanks to: DIY Fever

Description: Go to http://diylc.org for the latest release of this software.
This piece of software is great utility for everyone who draws board layouts, either for PCB,
Perfboard or Stripboard. It has simple yet very effective interface which makes job much easier.
Placing a component on board takes only 2-3 mouse clicks! You need to click on source and destination
hole and program will place component between them. Placing polarized components is the same, but then
you need to take care about hole order because program takes source hole for positive and destination
hole for negative side. It's similar with IC: pin 1 goes in source hole and last pin goes to
destination hole. When working with PCB layouts you can set width of each trace and solder pad! Also,
there's "Print PnP" which gives printout ready for transfer on blank board (laser printer
required).

Comments

You need to be logged in to add a comment.

Added 12/16/2011 1:13:02 AM by Scotsch

I'm not sure if THIS website works properly or is misleading. I'm trying to find a DIY-PCB software to download, I don't mind what the price is, it just better work. Free is fine too, as long as it makes stripboard/veroboard conversions from schematics.

Report Abuse

Added 2/1/2011 2:18:42 PM by sm9413

i wan download tis software..

Report Abuse

Added 1/31/2011 1:44:14 PM by bancika

There's a completely new version of DIYLC (3.x) available at http://diylc.org Cheers

Report Abuse

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
pcb


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Files
   Screenshot of the DIY Layout Creator
diy_layout.exe
   Installation file for the DIY Layout Creator.
drawdio.zip

   This is a ripoff design of a vintage guitar fuzz effect pedal. I would like to build it please.
Links
diylc.org
   Google Code site for the DIY Layout Editor. Go here for the latest version of DIY Layout editor.
diy-fever.com/index.php?project=sof
   Homepage for the DIY Layout Creator
code.google.com/p/diy-layout-creato
   Home page of the latest version
generaledefoutre.files.wordpress.co

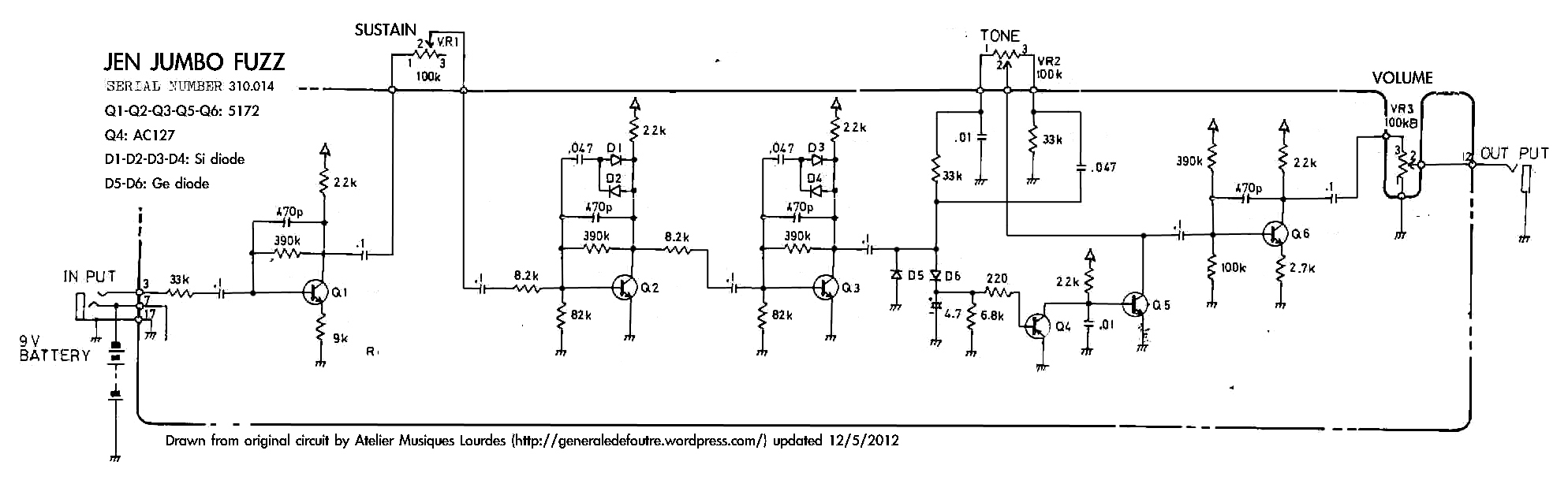

   This is an old vintage unusual ripoff of some other famous design for a guitar fuzz effect pedal.
