2SK184

Field Effect Transistor Silicon N Channel Junction Type

Courtesy/Thanks to: Toshiba

Description: Low Noise Audio Amplifier Applications
• High |Yfs|: |Yfs| = 15 mS (typ.) (VDS = 10 V, VGS = 0)
• High breakdown voltage: VGDS = −50 V
• Low noise: NF = 1.0dB (typ.)
(VDS = 10 V, ID = 0.5 mA, f = 1 kHz, RG = 1 kΩ)
• High input impedance: IGSS = −1 nA (max) (VGS = −30 V)
• Small package

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
ic
JFET


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files
2sk184.pdf
   Datasheet for the 2SK184 transistor

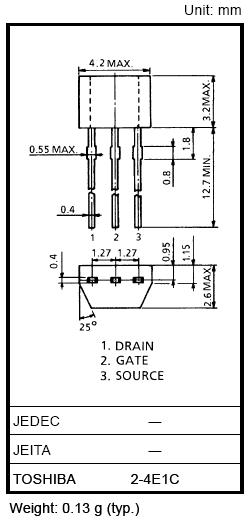

   Pinconfig of the 2SK184
Manufacturers
Toshiba
   Semiconductor manufacturer company
Used in
HM-3
   Hyper Metal
PQ-4
   Parametric Equalizer
SD-2
   Dual Overdrive
TM-7
   Guitar Monitor
