Quadrature Oscillator

Quadrature Oscillator

Courtesy/Thanks to: The Analog Cottage

Description: This very simple circuit features a Quadrature oscillator : the S2 output is 90 degrees

out of phase vs. the S1 output. This circuit can be used as a quadrature LFO to PAN/

Fade between two VCA's.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
VCO


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

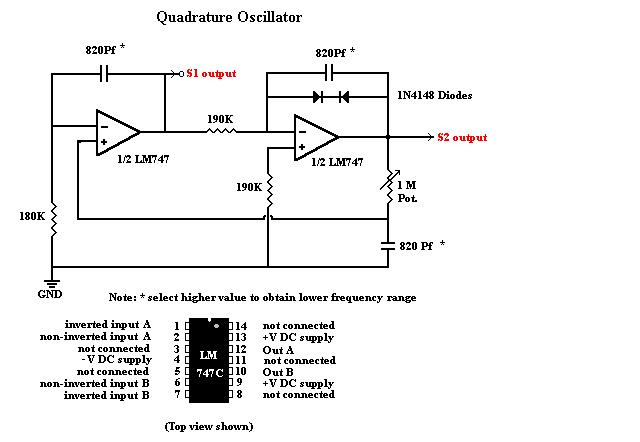

   Schematics for the Quadrature Oscillator
Links
www.angelfire.com/music2/theanalogc
   The_Analog_Cottage
Manufacturers
André C. STORDEUR
   The owner of the webpage The Analog Cottage and "the Den"
Parts used
1N4148
   High speed Switching Diode
LM 747
   Dual Operational Amplifier
