HEF4006

18-stage static shift register

Other names for this product: 4006,
Courtesy/Thanks to: Philips Semiconductor

Description: The HEF4006B is an 18-stage shift register arranged as two 4-stage and two 5-stage shift registers with a common clock input (CP). The two 4-stage shift registers each have a data input (DA, DB) and a data output (O3A, O3B); the two 5-stage shift registers each have a data input (DC, DD) and data outputs from the fourth and fifth stages (O3C, O4C, O3D, O4D).
The registers can be operated in parallel or interconnected to form a single shift register of up to 18 bits. Data are shifted into the first register position of each register from the data inputs (DA to DD) and all the data in each register are shifted one position to the right on the HIGH to LOW transition of CP.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files
hef4006b.pdf
   Datasheet for the 4006 18-stage static shift register.

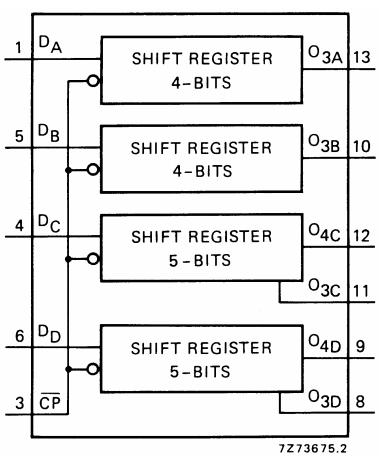

   Block diagram for the HEF4006.
Links
electro-music.com/forum/post-308284
   Electromusic forum thread about CGS Digital Noise (using a CD4006). A large discussion on wh
Manufacturers
Used in
CGS31
   Digital Noise Module
Chatterbox
   A simple speech synthesizer for demonstration and amuzement
