Pocket Dial

MIDI Control Box with 16 Rotary Encoders

Courtesy/Thanks to: Doepfer

Description: POCKET DIAL is a MIDI control box with 16 endless rotary encoders - in contrast to POCKET CONTROL that is equipped with 16 rotary potentiometers. This enables a jump-less change of parameters - provided that the device or software controlled by POCKET DIAL features data feedback of the new starting data after a preset change as POCKET DIAL needs the starting values of theparameters of the new preset. Another possibility is the increment/decrement control of the parameters in question. In this case the POCKET DIAL does not "know" the absolute values of the parameters but transmits only inc/dec data to the device/software. Only devices that features the data feedback or inc/dec control should be controlled by POCKET DIAL. If you need more details about this item please click here. For other devices we recommend POCKET CONTROL or POCKET FADER.

The main application of POCKET DIAL will be the control e.g. of software synthesizers. POCKET DIAL is placed in front of the computer screen so that the absolute parameter data and their changes can be seen immediately at the screen.

Features:

  • 16 high quality endless rotary encoders (alpha dials), manufacturer: ALPS
  • solid silver-grey metal case
  • measures about 25 x 9.5 x 4.5 cm
  • black knobs, about 18 mm diameter, having a good grip
  • distance between the knobs about 30 mm (from center to center)
  • 4 banks that can be selected very fast via 4 buttons and blue LEDs (thus 64 "virtual" controllers are available)
  • 32 presets (with 4 banks each, i.e. 128 presets altogether), selected via DIP switch at the rear panel.
  • program change button (as long as this buttons is pressed the encoder below no 8 transmits program change messages for fast preset changes of the unit controlled by POCKET DIAL)
  • master channel button (for fast adjustment of the MIDI master channel, same function as Pocket Control)
  • 24 detents/pulses per rotation, i.e. the data change is +/-24 per turn (if the encoder is turned slow, see acceleration)
  • acceleration function, i.e. the data change increases if the encoders are turned faster
  • the editor program (PC version) enables the user to program his own 128 presets. This means that you can define the function of each of the 16 controllers in your own 128 presets. You no longer depend on the factory presets ! The program can be downloaded free of charge from our internet site - e.g. to test the programming possibilities before you purchase the Pocket Fader.
  • external AC adapter for power supply (AC adapter for 230V AC and European type of mains connector is included, adapters for other voltages or other mains connector types must be purchased by the customer in his country, 7...12V/100mA DC required)
  • price: Euro 219.00 (i.e. about US$ 220.00) incl. power supply 230V version für European type of mains plug (the exact price in US$ depends upon the exchange rate between Euro and US$ at the payment day) .

  • Comments

    You need to be logged in to add a comment.

    Editing and adding
    You need to be logged in to edit and add files and urls etc.
    Categories & Tags
    Popular tags for this:
    MIDI


    You must be logged in to add tags.

    Inventory & Trading

    You need to be logged in to administer your inventory

    No one is selling this product at this time.

    Similar on Ebay
    Files

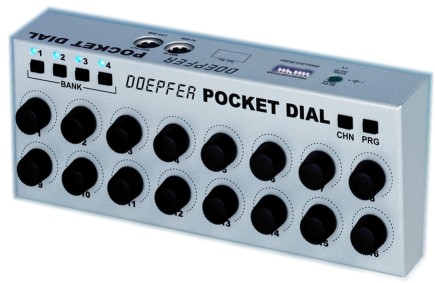

       Picture of the Pocket Dial
