Clock Divider

Courtesy/Thanks to: Yusynth

Description: From Yusynth.net: This module is meant to be a complement of step sequencers or to be used to trigger events at regular beats. It provides a way of clocking up to three step sequencers at various rates from a single external master clock, the master clock rate can be divided by 1 (unchanged rate), 2, 3, 4, 5, 6, 7 or 8 independently on the three dividers.

The three dividers can be clocked by the same clock signal on input IN #1, but a different master clock can be used for the second and third dividers by plugging it in the input IN #2 & 3.

The divided clock signals are available at outputs OUT #1, OUT #2 and OUT #3, and are visualized with LEDs.

A RESET input is provided to synchronize the dividers. Note that the outputs are all shaped to the same pulse width as that of the external clock.

Example : one master clock, STEP #1 = 1/2, STEP #2 = 1/3, SETP #3 = 1/5

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

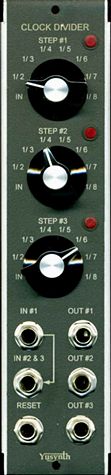

   Picture of the Yusynth clock divider.
   Schematics for the Yusynth Clock Divider
Links
yusynth.net/Modular/EN/DIVIDER/inde
   Yusynth Clock Divider homepage
Manufacturers
Yusynth
   SynthDIY contributor
Parts used
1N4148
   High speed Switching Diode
HEF4017
   5-stage Johnson counter
BC547
