Super Low Pass VCF SSM2044

Courtesy/Thanks to: Somatic Circuits

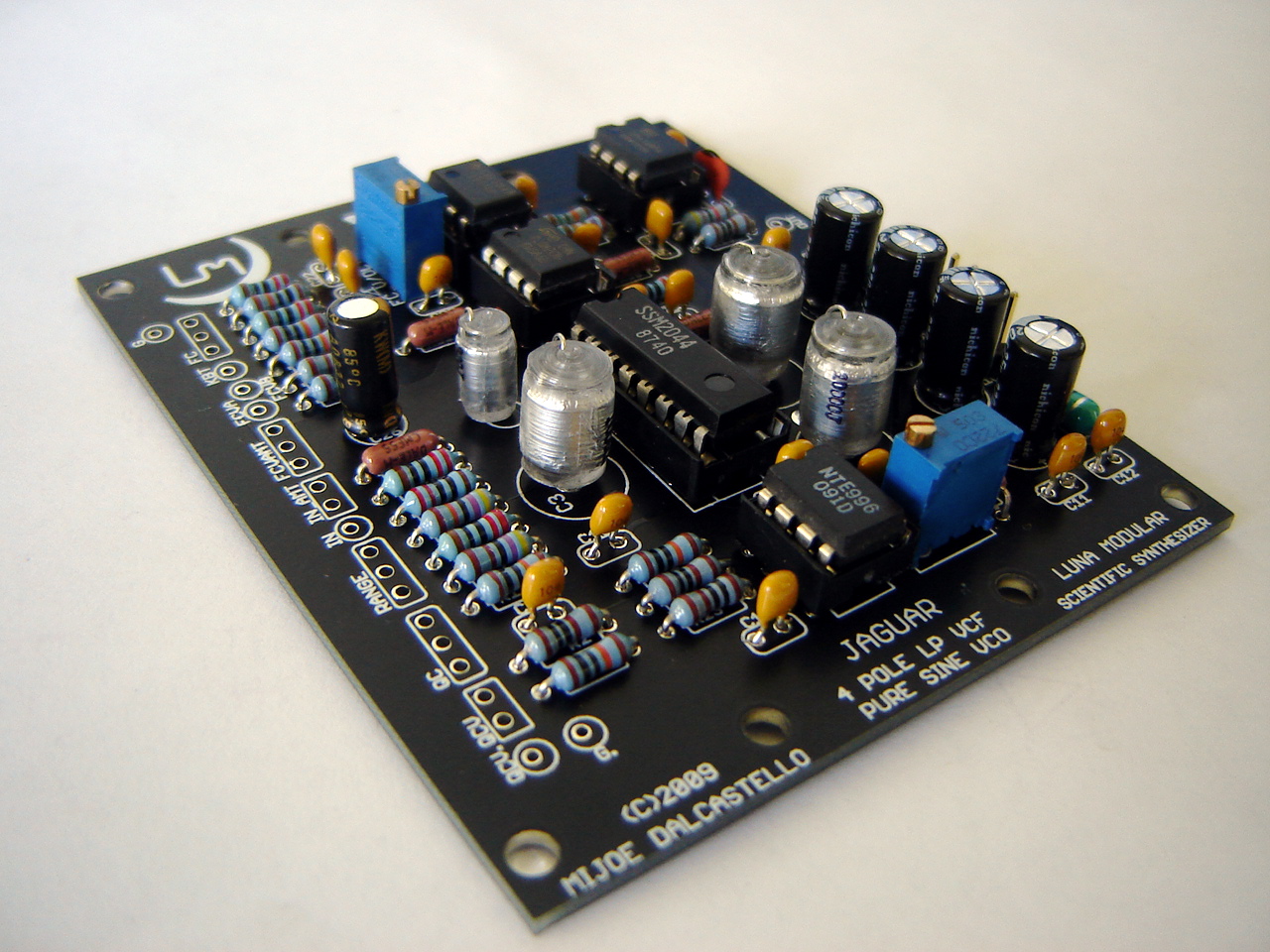

Description: Super low pass vcf based around the ssm2044 IC. Ultra quiet signal path with zero distortion, massive frequency range with vc linear resonance. Pure sine wave VCO when in self-oscillation with 1v/oct cv. Frequency ranges from below 10hz to above 20khz - ouch! PCB comes assembled , pots and sockets to be soldered, blank PCB available on request email me. All components and PCB RoSH compliant & Lead Free, all components and ICs high quality with tolerances at 1%. Kit comes with solid metal shaft Alpha pots.Requires a regulated 12/15v+/- suitable for frac and euro systems. Designed for the discerning synth user that requires nothing the best and them some. Go to somaticcircuits.com
