CGS48

VCO

Courtesy/Thanks to: Ken Stone

Description: PCB's for all of of Ken Stone's creations can be bought on his webpage.

Ibfo below from his site: This VCO started out life as a replacement for the original VCOs in my '73 Serge, so it replicates a lot of the functionality of that module. Of course there have been numerous enhancements to the design as well, making it right at home in a 1 volt per octave synthesizer.

The core chosen is the well known Electronotes ENS-76 VCO Option 1 as used in the ASM-1, Modulus, etc. This core was an obvious choice due to the amount of information, lists of suitable substitutes and so on that are available on the web.

It has AC and DC linear CV inputs as well as 1 V/oct. inputs and scalable/reversible CV inputs. It has sawtooth and pulse/square outputs, as well as a waveshape that is variable between sawtooth and a sine-like shape, and a fixed sine-like output too. It also includes a simple sub-oscillator for those who wish to experiment with that.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
vco


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

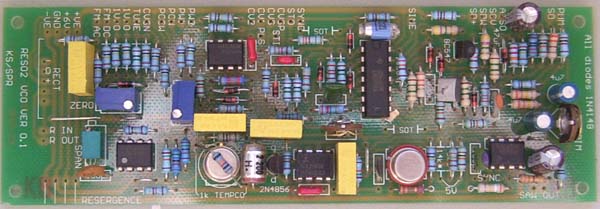

   Picture of the PCB for the CGS48 VCO.
Manufacturers
Ken Stone
   CGS (Cat Girl Synth)
Parts used
BC547
   1411
2N4856
   N-Channel Silicon Junction Field-Effect Transistor
LM311
   Single Comparator
1N4148
   High speed Switching Diode
