2SA970

Silicon PNP Epitaxial Type (PCT process)

Courtesy/Thanks to: Toshiba

Description: Low Noise Audio Amplifier Applications
 Low noise : NF = 3dB (typ.) RG = 100
Ω, VCE = −6 V, IC = −100 μA,
f = 1 kHz
: NF = 0.5dB (typ.) RG = 1 kΩ, VCE = −6
V, IC = −100 μA,
f = 1 kHz
 High DC current gain: hFE = 200~700
 High breakdown voltage: VCEO = −120 V
 Low pulse noise. Low 1/f noise

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

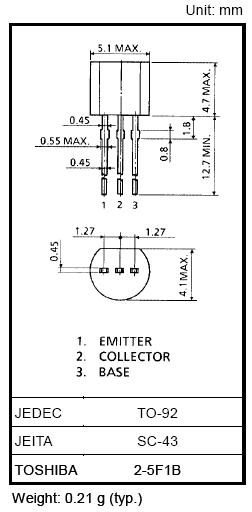

   Pinconfig of the 2SA970
