KBD 2e

Keyboard Converter

Other names for this product: kbd2e,
Courtesy/Thanks to: EFM

Description: Please observe that this project IS
NOT suported by EFM anymore


Keyboard converter / interface.
Features...
- 1 volt per octave control voltage
- Key gate
- Modulation LFO
- Modulation VCA
- Scaleable over 8 octaves.
- +/-12 or +/- 15V
Requires one or two switch per key
keyboard with a voltage divider of 1
resistor per key 100ohm 1%.
Like most EFM modules the KBD2e is multi
functional. It's primary function is to
convert a cheap plastic keyboard into a
synthesizer controller. It can be built
on a panel and bolted in the rack or
installed in the keyboard case. Getting
the keyboard can be a problem. The
easiest to convert I have found so far
are the four octave Casio's. Once you
have one you can ether build it in the
case it came in or remove the keyboard
and build it a more useable new case.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
CV


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files
kbd2e.pdf
   Information, Assemblyplan, Schematics and parts list for the KBD2E.
kbd_2e_forum.pdf
   PDF with the old EFM forum about the KBD2E.

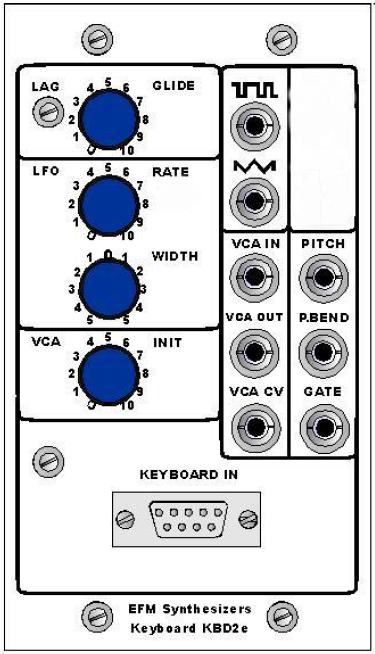

   Picture of the EFM KBD2e Keyboard to CV converter
