Quadra

Synthesizer

Courtesy/Thanks to: ARP

Description: Description from [www.vintagesynth.com]:

The Quadra is pretty much a hybrid version of the Omni II and the Solus synths. It's a four-section synthesizer consisting of a Bass synth, Poly synth, Lead synth, and String synth. It is quite good at emulating each of these sounds and can function in any of its four modes at a time with the ability of layering the different sections! Sounds you create in any of the four sections are instantly recalled from memory by the push of a button! There are 16 program patches for storing your sounds. Other major features are the incredible phase shifter, tons of balanced audio outputs for each section, dual portamento controls and a superior arpeggiator...that's pretty good for 1978! On the downside, it has a fragile mylar front panel, very limited programability and a weird feature that autotunes the keys to play weird intervals.

The Bass synth section is monophonic and can be programmed to occupy the lower two octaves of the Quadra's 5-octave 61-note keyboard. The bass sounds pretty good and has 16' and 8' presets each for Electric and String Bass sections.

The string section is based on the Omni II String synth. It sounds excellent and implements a phase-shift effect that is sort-of like a chorusing effect that thickens its already great string sound. In Polyphonic synth mode there are more effects available such as sample-n-hold and the phase-shifter. String and Poly Synth sections have 8' and 4' Polyphonic Waveform Generators each along with a preset called Hollow Waveform.

In Lead synth mode the Quadra becomes a two voice screamer with aftertouch sensitivity in the upper octaves of the keyboard! It's duophonic (like the Odyssey). Get a bass sequence going, switch over to another section and play along! The Quadra is a synthesizer well suited to live performance use and has been used by 808 State, ELO, Genesis, The Human League, Pink Floyd, New order, Joe Zawinul, and film-maker John Carpenter. The 16 patches of memory aren't true memories, they simply recall which parameter sliders are active (and thus need adjusting!) and which are standards settings.

Comments

You need to be logged in to add a comment.

Added 11/11/2011 12:49:29 PM by cchrispeters

I will be resurrecting an ARP Quadra this afternoon. Schematics would be helpful. We will see how far we get.

Report Abuse

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files
ARP_Quadra_Owners_Manual.pdf
   Owners manual for the ARP Quadra.
ARP_Quadra_Schematic.pdf
   Schematics for the ARP Quadra synthesizer.
ARP_Quadra_Service_Manual.pdf
   Service manual for the ARP Quadra
ArpQuadra-OwnersManual.pdf
   Owners manual for the ARP Quadra.
ArpQuadra-Schematics.pdf
   Schematics for the ARP Quadra Synthesizer
ArpQuadra-ServiceManual.pdf
   Service manual for the ARP Quadra synthesizer

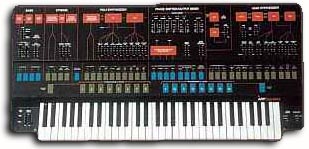

   Picture of the ARP Quadra
