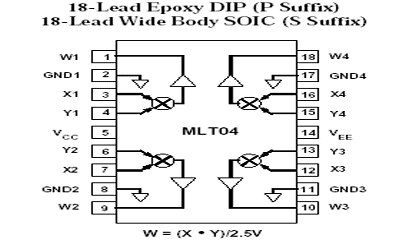

Functional block Diagram   Picture is courtesy of: National Devices

MLT04

Four-Channel, Four-Quadrant Analog Multiplier

Courtesy/Thanks to: Analog Devices

Description: The MLT04 is a complete, four-channel, voltage output analog multiplier packaged in an 18-pin DIP or SOIC-18. These complete multipliers are ideal for general purpose applications such as voltage...






  • Four Independent Channels
  • Voltage IN, Voltage OUT
  • No External Parts Required
  • 8 MHz Bandwidth
  • Voltage Output; W = (X × Y)/2.5 V
    0.2% Typical Linearity Error on
    X or Y Inputs

  • Four-Quadrant Multiplication
  • Operates from ±5 V Supplies
  • Excellent Temperature Stability: 0.005%
    ±2.5 V Analog Input Range

  • Low Power Dissipation: 150 mW typ
  • Spice Model Available
