midi2cv8

MIDI to CV Converter

Courtesy/Thanks to: Paia

Description: MIDI2CV8 is actually a part of the 9700 Modular series by Paia, but can also be used as a standalone unit to deliver CV-modulation via MIDI.


For the latest firmware and additional info check out Paias homepage.


This freshly updated MIDI to CV converter from PAiA is an economical and
versatile solution for interfacing MIDI to the world of analog synthesis and
control. It is an easy to build and use system with eight analog outputs that
can be Control Voltages, Gates, Triggers, even variable amplitude pulses for
triggering analog drum sets. The newly revised firmware allows Multi assignment
of notes by midi channel and a DIN sync mode that can also control of one or two
synths while sync is running.


Operating modes in the v.2.0 firmware allow:



  • Pitch and Gate control of 4 synth voices. Either Multi
    (assignment of data from four midi channels) or Mono (rotational assignment of
    data from one midi channel) operation.
  • Pitch, Velocity and Gate control of 2 voices plus Pitch and Mod wheel
    CVs.
    Either Multi or Mono assignment can be selected.
  • Pitch, Velocity, Pitch Wheel, Mod Wheel, Release Velocity, Channel
    Pressure, Gate and Re-trigger.
    Complete, true staccato control
    of one synth voice.
  • 8 CVs from Continuous Controller messages. Controllers
    can be on one midi channel or separate channels.
  • Analog Drum Trigger Mode. 8 pulses by note# with pulse
    amplitude set by note velocity.
  • DIN Sync - 24ppq, Start, Stop and Continue PLUS simultaneous control of a single Pitch, Velocity, Gate, Wheel,
    Re-trigger synth voice or two multi-assigned voices with Pitch,
    Velcocity, and Gate.
  • Self-Test. Separate checks of midi input and analog
    outputs verify operation and aid in set-up and trouble-shooting.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:
MIDI


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files
   Drawing of the Midi2cv8

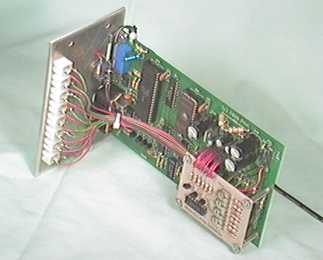

   picture of the assembled midi2cv8 unit
   picture of the assembled midi2cv8 unit
midi2sch.pdf
   Schematics for the midi2cv8 MIDI to CV converter
midi2mds.pdf
   midi2cv8 v2.0 Firmware Operating Modes
md2cv820.zip
   midi2cv8 firmware v2.01 archive 01/05/97 license is granted for individual non-commercial use. Fa
Manufacturers
Paia
   DIY Kit manufacturer since 1967
Modular mother system
P9700S
   Modular Synthesizer System
Parts used
CD4051
   Single 8-Channel Analog Multiplexer/Demultiplexer
