Single-Sideband Suppressed Carrier Demodulator

Courtesy/Thanks to: André C. STORDEUR

Description: No, it is not a ring modulator: it is a Single-sideband Suppressed Carrier Modulator/Demodulator (or Frequency shifter).

With this module, not only the carrier, but one of the sidebands is suppressed, so that the frequency components in the output of this device consist of either the sum or the difference of the carrier frequency and the frequency of the components in the modulating signal.

Note: all output signal components , except the desired demodulated audio signals, are filtered out: no standard offset adjustment is required. If the LM1596 is not available you can use the LM1496, but check the pin assignments.

Comments

You need to be logged in to add a comment.

Editing and adding
You need to be logged in to edit and add files and urls etc.
Categories & Tags
Popular tags for this:


You must be logged in to add tags.

Inventory & Trading

You need to be logged in to administer your inventory

No one is selling this product at this time.

Similar on Ebay
Files

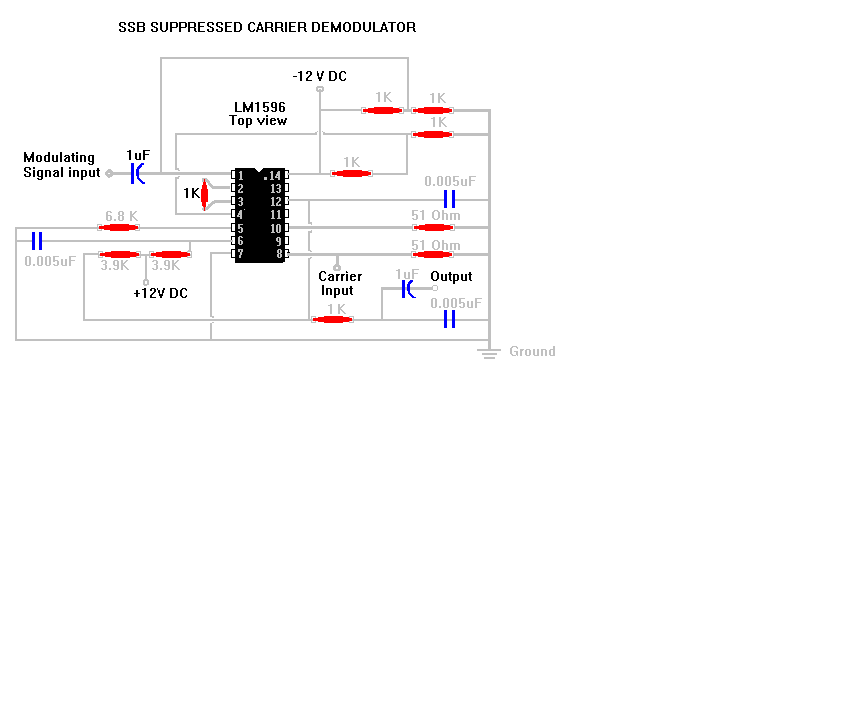

   Schematics of the Single-Sideband Suppressed Carrier Demodulator
